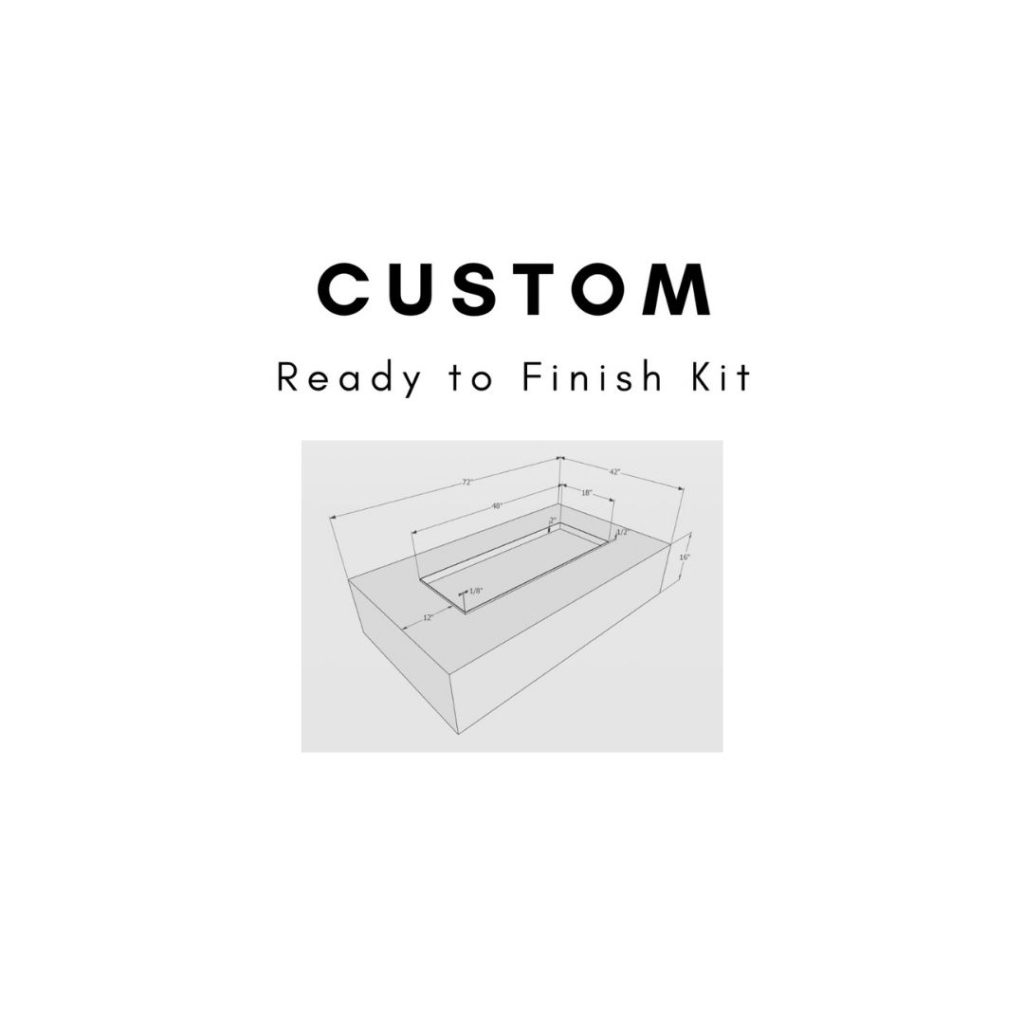

Custom Ready to Finish Fire Pit Kit with Crossfire Burner

Custom Ready to Finish Fire Pit Kit with Crossfire Burner

Custom fire design has never been simpler. These kits come ready to burn... just add the veneer. Whether that's tile, granite, stone, stucco, or whatever else you can dream up! High BTU Crossfire Brass Burners come standard.

BTUs: Depends on size

Material: 1" Welded Aluminum Frame

Options: Frame only or waterproof 1/2" GoBoard

Burner: Crossfire Brass Burner System by Warming Trends

Pan with 2" Sidewalls and Drain Holes

Flex Line Kit with Key Valve for flame height adjustment

2 Silver Vents (to be installed on site)

Key Valve Extension

Key Valve Mounting Bracket

Choose between Match Lit, Push Button or Electronic Ignition

Complimentary Nationwide Shipping

VIEW STANDARD OPTIONS

View SPEC SHEETS

Estimated ship date: October 10, 2026

  • Product Overview

    The industry standard for luxury and performance

    Specs and Shipping

    Shipping Weights

    • 48″ x 30″ – 100lbs
    • 55″ x 32″ – 114lbs
    • 60 x 36″ – 126lbs
    • 67 x 36″ – 138lbs
    • 72″ x 42″ – 156lbs
    • 76″ x 32″ – 160lbs
    • 86″ x 42″ – 195lbs
    • 96″ x 36″ – 212lbs

    Shipping Details

    Ready to Finish Kits are shipped on a pallet via freight

    • Expect your kit to arrive 4-6 weeks after order is placed
    • We will email you tracking information
    • Freight driver will call to confirm your availability

    What\’s included

    • 1″ Aluminum welded frame with optional 1/2″ backer board attached
    • Crossfire Burner mounted to aluminum pan with 2″ sidewalls and drain holes
    • Flex Line Kit with Key Valve for flame height adjustment
    • 2 Silver Vents (to be installed on site), and a key valve extension
    • Match Lit is standard, or ADD IGNITION

    How much Lava Rock

    Use the pan dimensions to determine how much lava rock you will need:

    • Use 3″ of lava to properly cover a Crossfire Burner

    4-Sided Fire Pits


    Width of the area to be filled in inches (in.)


    Length of the area to be filled in inches (in.)


    Depth of the area to be filled in inches (in.)


    0 Pounds

    Circular Fire Pits


    Diameter of the area to be filled in inches (in.)


    Depth of the area to be filled in inches (in.)


    0 Pounds

    Care & Maintenance

    Keep the burner covered when not in use to avoid water build-up in the jets.

    Warranty & Returns

    The burner has a lifetime warranty – READ MORE

      • Should damage occur during shipping, we will address it ASAP
      • Any claims for loss or damage sustained in transit must be filed with carrier immediately.
      • All sales are final. No refunds. Exchanges for equal value or higher with prior approval. A restocking charge will apply.
      • All sales are made pursuant to these conditions and orders are received with the understanding that they are placed under these conditions.

    Installation

    Some assembly is required. Fuel components must be connected by a licensed gas professional.

    • For the best flames, make sure you have adequate fuel line size and gas pressure
    • Learn Now

    Click HERE for installation instructions.

    The Burner Matters

    Nothing compares to the Warming Trends Crossfire burners. The fire is where it counts. A better fire = a better experience. Bring the HEAT!

    • Lifetime Warranty
    • Twice the Flame
    • All Brass Construction (no corrosion)
    • Engineered \”jets\” mix oxygen with fuel to create efficient and beautiful flames

    Build Ideas (click to enlarge)










































    Related Videos




    See the Difference Between Burner Styles



    The Crossfire Vs. Standard Stainless Steel Burners



    The Electronic Ignition Upgrade



    More About Ready to Finish Kits

    • Forged in Montana

      Hand-welded to order in Bigfork by the same team that has built fire features for over a decade.

    • Industrial-grade materials

      Heavy-gauge American steel and all-brass burner systems rated for continuous high heat.

    • The perfectionist standard

      Every weld, finish, and flame is inspected and signed off before it ships.

    • Real human support

      Speak to people who know the product, before you buy and long after it is installed.

  • Item Details
    Vendor
    Montana Fire and Fab
  • Care

    Your fire feature is built from heavy-gauge steel and finished to last through hard weather, and a little routine care keeps it looking its best for years.

    • Everyday cleaning: Wipe painted and powder-coated surfaces with a soft cloth, warm water, and mild dish soap. Rinse, then dry with a clean towel. Avoid abrasive pads and harsh solvents, which can dull the finish.
    • Burner and pan: Keep the burner ports and the pan clear of ash, debris, and stray media so the flame stays even. A soft brush and a dry cloth are usually all you need.
    • Seasoning raw and Corten steel: Raw steel and Corten develop a protective patina as they weather. Rinse off loose surface rust, let the metal dry, and allow the finish to keep maturing. Do not seal it unless you want to hold the current color.
    • Use the cover: Fit the cover whenever the piece is not in use. It keeps rain, snow, and grit out of the burner and protects the finish between gatherings.
    • Off-season storage: Before a long cold spell, clean the unit, make sure it is fully dry, and cover it. Store loose media and the burner pan somewhere dry if you can. Empty and disconnect propane tanks, and keep them outside and upright.

    Gray weathering, light surface rust on raw steel, and small color shifts over time are normal for an outdoor steel finish, not defects.

  • Shipping

    Every order ships by freight carrier on a pallet. Because these pieces are large and heavy, they travel as curbside freight rather than white-glove delivery, so the driver brings the shipment to the curb or the end of your driveway. Plan to have help on hand, or ask us in advance about a liftgate if you do not have a forklift or loading dock.

    • Lead times: Timing varies by product. In-stock items usually leave the warehouse within a few business days, while made-to-order and custom pieces take longer to build. We confirm the current lead time for your specific configuration before your order is finalized.
    • Tracking: Once your order ships, we send tracking details, and the freight carrier schedules a delivery window with you.
    • Inspect on arrival: Please inspect the packaging and the product when it arrives, and note any visible shipping damage on the delivery receipt before you sign. Let us know right away so we can make it right.

    Shipping cost and options depend on the product, your location, and any accessories, and they are shown at checkout or confirmed with your quote.

  • Guides & Installation

    Installation should be carried out by a qualified professional, and any gas work must be completed by a licensed installer in line with local code. Confirm gas type, line sizing, and supply pressure before installation day.

    Product guides, spec sheets, and cut sheets are provided with your order and are available on request. Contact our team for the installation manual and documentation for your specific model.

  • Warranty & Returns

    We stand behind how these pieces are built. Every product is inspected before it leaves the workshop, and we work with you directly if something is not right.

    • Workmanship: Our products are warranted against defects in materials and workmanship under normal residential use. Coverage, terms, and any exclusions depend on the product and its components.
    • What is not covered: Normal weathering, patina, surface rust on raw and Corten steel, color change over time, and damage from misuse, alteration, or improper installation are not considered defects.
    • Returns: Made-to-order and custom configurations are built specifically for you. If you need to return or exchange an item, contact us first so we can walk through your options and any conditions that apply.
    • Freight damage: Damage in transit is handled separately from the warranty. Note it on the delivery receipt and contact us promptly so we can file a claim and arrange a fix.

    For the exact warranty period, coverage by product line, and current return terms, please contact our team and we will confirm the details for your order.
