Circular Tree-Style Burner Large: 120,000 BTU Warming Trends Crossfire Brass Burner Kit (CFBCTL120) 11″ x 10″ – Openings 17″ or Larger

$562.00

>> Shipping Estimate: December 28 - January 04

Burner inlet is 1/2". When using our optional key valve kit, inlet is 3/4". See Fuel Requirements

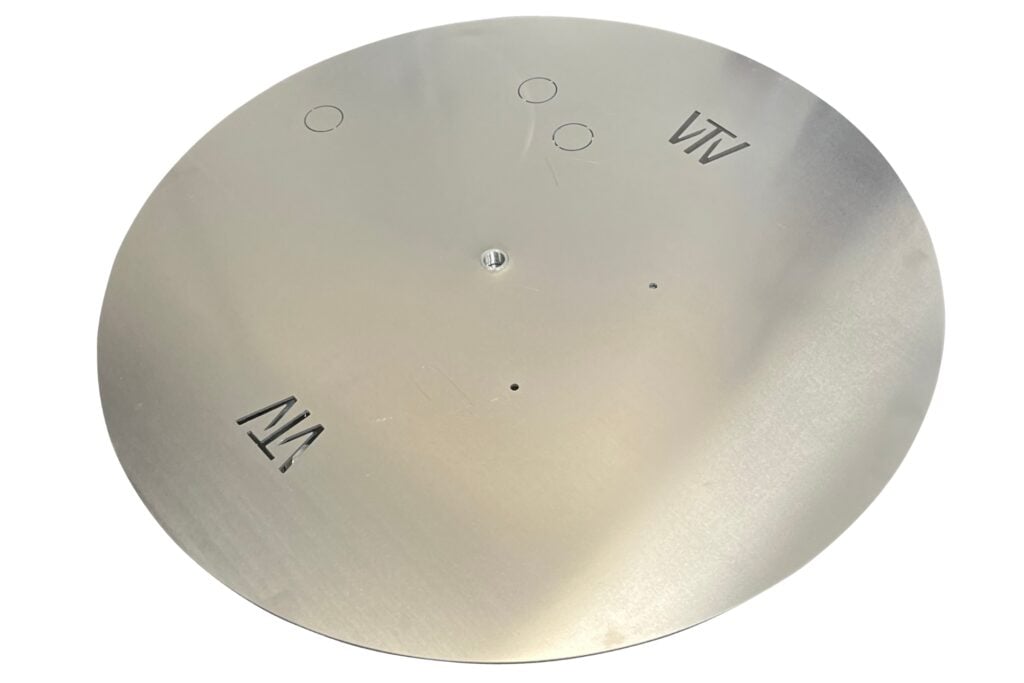

Made of aluminum (no rust)
It's best if the plate is 1/2" smaller than the fire pit opening
Your plate will be cut to the exact diameter that you enter
Made of aluminum (no rust)
It's best if the plate is 1/2" smaller than the fire pit opening
Your pan will be cut to the exact diameter that you enter
Learn More about Ignition. *Freight fee is built-in to the price for 24v systems.
Select all that apply. Need Help Deciding?
Select all that apply. Select all that apply. Need Help Deciding?
Select all that apply
Product total
Options total
Grand total

Description

You’ve found the industry’s  best outdoor gas fire pit burner! Made from 100% brass, infused with engineered “jets” that mix oxygen with fuel; there is simply nothing like the Warming Trends Crossfire burners. The 120,000  BTU Circular Tree produces tall, hot, efficient, natural looking flames that emulate a wood-burning campfire. No more smoke. No more wood. No more hassle.

  • Free Shipping (lower 48 states)

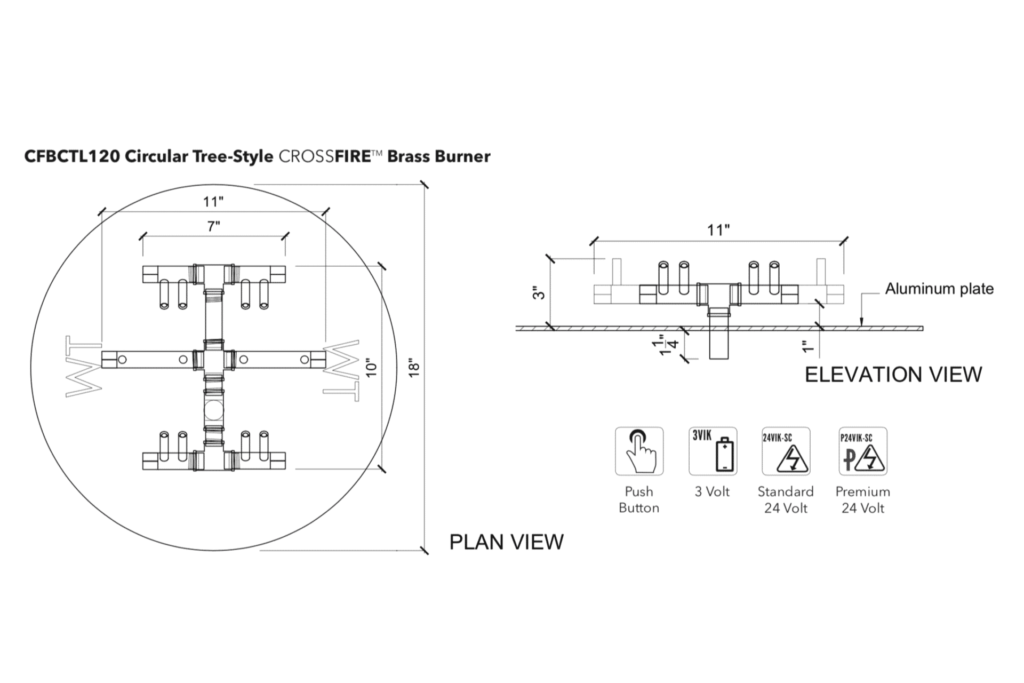

  • Burner Size: 11″ x 10″
  • Inlet Size: 1/2″
  • Key Valve Inlet Size: ¾”
  • Standard Plate: 18″
  • Made in the U.S.A
  • WaterStop Fitting Included: Keeps water out of the gas line
  • For outdoor use only
  • All-brass burner (choose natural gas or propane)

If Selected:

  • Key/Flex Line Kit (FK1 or FK2)
    • Enables flame height adjustment
    • 3/4″ Quarter Turn Key Valve by Dante
    • 3/4″ Whistle-Free Flex Line (36″ long, comes with 2 for burners over 250K BTUs)
    • 4″ key & 12″ key and chrome finishing plate
    • Appropriate fittings to connect flex line to burner
    • LEARN MORE about the key valve/flex lines
  • Aluminum Plate or Pan
    • Standard sizes have faster lead times and lower costs
    • Custom plates, pans, and drop-in pans available HERE
    • Commonly comes with welded, threaded coupling. However, your design/burner may not have one and this is normal.
    • Plates and Pans are perfect for holding fire media such as lava rock
    • LEARN MORE
  • Additional Accessories are available as needed

Shipping Details

  • Each burner is hand-built to order
  • Kits 36″ and under ship UPS
  • Kits over 36″, or with electronic ignition ship freight
  • If using electronic ignition, keep covered in wet weather in order to avoid water build-up in the ignition system
  • Keep debris out of the jets – WATCH VIDEO
  • For more burner care, CLICK HERE
  • The burner has a lifetime warranty – READ MORE
  • Ignition Systems Warranty – 2 years (residential), 1 year (commercial)
    • Should damage occur during shipping, we will address it ASAP
    • Any claims for loss or damage sustained in transit must be filed with carrier immediately.
    • All sales are final. No refunds. Exchanges for equal value or higher with prior approval. A 15% restocking charge will apply.
    • All sales are made pursuant to these conditions and orders are received with the understanding that they are placed under these conditions.
  • Returns
    • Customer is responsible for return shipping charges
    • Burner must be in like-new condition
    • Subject to 15% restocking fee

Some assembly is required. Fuel components must be connected by a licensed gas professional.

Follow our FIRE PIT GUIDE for all the answers.

ICC Design Certified Crossfire™ Brass Burner is a state of the art outdoor flame system. It was established with a specific air to gas mixture ratio which produces twice the flame with the same volume of fuel. Or, the same amount of flame using half the amount of gas. This innovative technology has allowed our product to outperform all other outdoor fire pits on the market.

Warming Trends™ patented technology is unique only to our Crossfire™ Brass Burner System, which allows you the benefit of gas savings and a higher quality experience. No need to use the old fashion fire rings anymore.

The Burner Matters

Nothing compares to the Warming Trends Crossfire burners. The fire is where it counts. A better fire = a better experience. Bring the HEAT!

  • Lifetime Warranty
  • Twice the Flame
  • All Brass Construction (no corrosion)
  • Engineered “jets” create efficient and beautiful flames

Will it Keep Me Warm?

  • This burner produces incredible heat
  • For OPTIMAL warmth, you need to retain that heat
  • Here’s How

Don't Miss the Essentials

Finish the top with beautiful fire media, or add accessories such as a cover or ignition.

Shop Accessories

Need Questions Answered?

We have you covered. Expert advice comes standard.

    0
    Your Cart
    Your cart is emptyReturn to Shop

        Before you Buy

        *IMPORTANT*

        Concrete/GFRC fire features WILL develop charring and non-structural cracking, aka hairline cracks. This is the nature of concrete and thus, not covered by warranty.

        Hairline Cracks & Charring Will Occur

        Nearly ALL concrete fire pits, whether sold by Montana Fire Pits or others, will eventually develop the same characteristics of browning/charring AND hairline cracks. The cracks can appear anywhere on the concrete shell, but are most prominent on the inside ledges nearest the fire. Visibility of the hairline cracks has been known to diminish when the unit is dry. The cracks will re-appear when any moisture is present. These characteristics can develop as soon as 20 minutes after lighting the fire.

        Montana Fire Pits does not provide warranty coverage for cracking, charring/browning, or chipping of a concrete vessel.

        Exceptions:

        Shipping damage that has been properly photographed and documented by the receiver, as well as submitted to Montana Fire Pits within 3 days of delivery, OR ideally the shipment is refused, will be considered for a freight claim based on evidence provided by you, the customer or receiver.

        Considerations: Ways to Minimize Cracking and Charring

        • Do not use the fire in windy conditions. Windy conditions cause the flame to lay over and come in contact with the concrete.
        • Do not burn on high for more than 15 minutes, especially in windy conditions.
        • Consider glass flame guards. The guards may help reduce the risk of the fire charring the inside edge of the burn area. There is no guarantee this will remedy the cracking and charring.
        • Consider an alternative material for the fire vessel. We recommend steel and aluminum for the most durability. These materials are unaffected by the fire. You can burn on high for long periods of time without charring the metal. Soot may build up, but it wipes off with mild soap and a soft cloth.

        If you wish to proceed with a concrete fire system, we’ll send you a document to sign which is your acknowledgement that the warranty does not cover cracking, charring, or chipping.

        Fire Pit Cover Guide

        Tabletop Cover Options

        Note: Most tabletop covers that are larger than 48″ are fabricated in 2 or more pieces for ease of handling.

        The Advantage of Arbor Wood

        We at Montana Fire Pits have a favorite when it comes to covers; introducing our very own hand-made Arbor Wood Covers. They elevate a fire system to new levels in regards to aesthetics, as well as functionality.

        • Thermally modified lumber allows natural wood to last 30+ years
        • You can let it weather into a beautiful gray tones, or easily re-apply protective oil at anytime to enjoy the dark, rich colors
        • Lighter and easier to carry compared to steel covers
        • Create a very inviting and functional tabletop experience
        • Recommended Clear Oil: Cutek Stain Extreme
        • Purchase ARBOR WOOD

        Covering the Burn Area

        • Best practice is to cover at least the burn area when not in use
        • This keeps water and debris out of the components
        • If you consistently cover your Crossfire burner, you enjoy the peace of mind of a lifetime warranty

        Covering Edge to Edge

        • Covering the entire top of the fire system is a great design option
        • Creates a very uniform appearance
        • Especially fitting for when your top ledge is 5″ or narrower
        • Optional: make the dimensions 2″ larger than the fire pit for a different look

        Adding Sidewalls: the Raised Cover

        • Available with our hand-built Arbor Wood Covers
        • When you want fire media that mounds up, such as cannonballs or logs, a cover with sidewalls might be for you
        • Determine how high your fire media might be
        • In rectangle fire systems, fire media tends to mound up a little less, and so we recommend 5″ sidewalls
        • For round fire systems which tend to have higher fire media, we recommend 8″ – 10″ sidewalls
        • Keeps the finish clean
        • Great for covering fire pits with stacked up fire media over 5 inches, such as with gas logs
        • Not considered necessary if you have a tabletop cover
        • You may consider it for harsh winters, prolonged sunlight

        If you desire a soft cover, we recommend that you purchase your SOFT COVER after your fire pit is installed and your fire media is chosen.

        Understanding Materials and Applications

        Steel

        • Lowest cost option when purchased with a steel fire system
        • Sits flush within the burn area for a perfect fit
        • Flawless color match
        • Disadvantage: it’s heavy, can be mildly difficult to place on the fire system

        Aluminum

        • Lighter than steel
        • Great for concrete, ready to finish kits, paver fire pits, etc…
        • Can be powder coated or raw/brushed
        • When ordered with a concrete system, aluminum covers will be built to fit within the burn area ledge for a flush interface

        Arbor Wood

        • Beautiful and authentic
        • Easy to handle
        • Very low maintenance
        • Extremely long-lasting
        • Editor’s pick BEST fire pit cover

        Congratulations!

        You have reached our top status… Pro Solutions Platinum. Enjoy our best pricing.

        Free shipping applies to most orders over $99 in the continental U.S.

        Tax Exemption: If you have documents to prove exemption from your state sales tax, visit YOUR ACCOUNT and click on “Tax Exemption”.

        Contact Us

        Mon – Fri: 9am – 4:30pm MST

        Sat – Sun: Closed

        Online Contact

        Call (833) 228-5244

        Chat (coming soon)

        Your Active Discounts

        Discounts will be automatically applied to your cart.

        Free shipping applies to most orders over $99 in the continental U.S.

        Tax Exemption: If you have documents to prove exemption from your state sales tax, visit YOUR ACCOUNT and click on “Tax Exemption”.

        Contact Us

        Mon – Fri: 9am – 4:30pm MST

        Sat – Sun: Closed

        Online Contact

        Call (833) 228-5244

        Chat (coming soon)

        Quick Contact

        Expert advice comes standard

        Mon – Fri: 9am – 4:30pm MST

        Sat – Sun: Closed

        Online Contact

        Call (833) 228-5244

        Chat

        Manuals & PDFs

        Your local gas professional (plumber, HVAC, propane supplier, etc…) needs to know these requirements

        1. BTU rating of the burner
        2. Fuel Pressure recommended at the Burner
          • Natural Gas: 7″ Water Column
          • Propane: 11″ Water Column

        Fuel Requirements

        Your local gas professional (plumber, HVAC, propane supplier, etc…) needs to know these requirements

        1. BTU rating of the burner (read more under “Gas Line Sizing”)
        2. Fuel Pressure recommended at the Burner
          • Natural Gas: 7″ Water Column
          • Propane: 11″ Water Column

        There are various pros/cons of Liquid Propane (LP) and Natural Gas (NG). The difference between LP and NG Warming Trends burners are the “jets”. If, down the road, you need to convert from LP to NG or vice-versa, you can do so by purchasing replacement jets from us at $25 each.

        Propane – pros

          • Flexibility/portability
          • Opens up new location possibilities
          • Sometimes NG is not available

        Propane – cons

          • More expensive to burn than NG
          • Heavier than air, so it sinks down. This makes ventilation more important.
          • Requires refilling the tank
          • Hiding the propane tank can present new aesthetic challenges
          • Black soot tends to build up faster on fire media such as ceramic logs and cannonballs (it can be cleaned off)

        Natural Gas – Pros

          • Cheaper to burn; you probably won’t even notice an increase in your gas bill. Clients of ours have reported $0.25 – $0.75 per hour
          • You won’t run out, so burn to your heart’s content without the dreaded “we’re out of gas”
          • Since it’s lighter than air and rises, there’s less likelihood of unwanted fuel accumulation in the vessel
          • Slightly cleaner burning; less soot build up

        Natural Gas – Cons

          • Limited to what’s available in your area
          • May require upgraded meter or larger diameter fuel lines to provide adequate BTUs
          • The volume and pressure can be affected by other appliances
          • Might require a longer gas line, depending on where your fire feature will live
          • Would be difficult to change the fire feature’s location after installation
          • Check the side of your gas meter for a BTU rating. Most commonly they are rated at 250K BTUs

        Even though the standard key valve inlet is 3/4″, you may need a larger gas line to span long distances.

        In order to get the proper volume and pressure of fuel, you need a gas line that is large enough in diameter to carry it sufficiently. For the most accurate assessment, consult a fuel professional. For a rough estimate, utilize our gas line sizing charts below.

        *Make sure the BTUs from your line can supply at least 60-70% of what the burner is rated at. (At 60% capacity, your flame height may be more like 18″ high vs. 24″+ at full capacity.)

        Propane Gas Line Sizing Chart

        Natural Gas Line Sizing Chart

        Gas line sizing variables

          • Using angled couplings can reduce the volume/flow of fuel
          • Adding a 90 degree angle in your line adds the equivalent of 5 feet of distance
          • Running different sized lines over various distances is acceptable, but for maximum fuel volume, run larger lines over long distances
          • Number of appliances, whether it’s a dedicated line or not; all these factors play a role in volume and pressure
          • Pro Tip: if you haven’t installed your gas line yet, consider running it in conduit so that if you ever need to repair or change it, you won’t have to dig it up

        You can have great gas pressure, but if your line is too small, you may not get the desired flame. Think about it like filling up a swimming pool. If you reduce the nozzle size significantly, you may have a ton of pressure, but it’s going to take longer to fill up the pool. You need both pressure and volume to get a great flame. This is why the size of the gas line is so important.

        Now that you understand the importance of volume (BTUs), let’s talk pressure.

        Optimal Pressure for Crossfire burners:

        • LP: 11″ water column (w.c.)
        • NG: 7″ water column (w.c.)

        Water Column is the term used to measure pressure. There are 27.7 inches of water column pressure in 1 PSI of pressure. So 7″wc is about 1/4 PSI. This is the normal pressure that household natural gas is delivered.

        The device used to measure pressure of this type is called a Manometer

        Pressure too High? You may experience unwanted noise, usually a hissing sound. You might also find it difficult to dial in the desired flame height using the key valve.

        Pressure too Low? The flame will not be as tall and hot

        Location of Gas Stub

        • Most commonly the gas stub is positioned underneath the fire feature so that you don’t see it
        • It can be off-center or on-center, depending on the size of your fire feature
        • You may want to go off-center if you’re using electronic ignition
        • The key valve is generally located on the side of the fire pit, so if it makes sense for your build, place the gas stub off-center to reduce the distance of gas stub to key valve
        • Most often, the plumber will use hard pipe to connect from the gas stub to the key valve. However, if they decide to use a flexible line, most lines are 36″ long, so it makes sense to try and keep the gas stub within 36″ from the key valve location
        • Instruct the contractor to keep the gas stub as low as possible to make room for electronic ignition, or in the case that the plate sets fairly low
        • On some builds, the plate sits only 8″ off the ground

        You DO NOT need an air mixer with any of our burners. Air is mixed at each jet.

        LP Regulators

          • For optimal regulation for burners over 250K BTUs, contact a local propane supplier
          • For regulators 250K BTUs or lower, purchase our REGULATOR KIT
          • From the tank, propane is HIGH PRESSURE, so it must be regulated down, because the burners are low pressure
          • For longer gas lines, we often use a high pressure (10psi) regulator at the tank end, and a “2nd stage” regulator on the other end of the line to bring the pressure to 11-13″wc

        NG Regulators

          • Consult a professional (plumber/HVAC)

        Standard 20lb Tank

        • A standard 20lb/5 gallon BBQ propane tank can be used for burner systems 180K BTUs and under
        • The Canyonlands Fire Table is a complete unit that can have a self-contained propane tank
        • Burn time varies from 6-12 hours, depending on how hot you run it
        • Results may vary, and it is common for the fuel to “freeze up” with burners 180K BTUs and up. What that means is that after 45 minutes or so, the flame only goes to about half. Remedy this by using two tanks connected together

        40lb Tank

        • This is a better option for most of our burners from 100K to 200k BTUs
        • It will give you longer burn times
        • Still relatively small and easy to move

        High Volume Tanks

        • Contact your local propane supplier

        Hiding the Tank

        • You can always run a larger diameter line and hide the tank in an inconspicuous location
        • You can purchase 20lb propane tank covers that make hiding the tank a cinch

        Gas Consumption

        • All of our burners burn with incredible efficiency due to the engineered jets. They mix fuel and oxygen at the flame which makes it taller, brighter, and hotter using less fuel
        • Read all about how much fuel you might be burning at full capacity – Learn More

        Compliance with the following standards:

        • ANSI Z21.97/CSA 2.41 Outdoor Decorative Gas Appliances
        • The burner system is certified nationally, however, it is up to the customer or contractor to verify local requirements

        Certified Burners

        Massachusetts

        Effective May 5, 2021 over 100 Warming Trends CROSSFIRE burners will be approved for use in Massachusetts.

        All gas products approved for use can be found on the Massachusetts Consumer Affairs and Business Regulation (OCABR) website: Office of Consumer Affairs and Business Regulation (OCABR). To confirm the approval of a product, simply:

        1. Visit the OCABR website.
        2. Select “Product Information” from the drop down, then click “Go.”
        3. Enter Product information.
          1. Select “Gas”
          2. Manufacturer: Warming Trends, LLC
          3. Model Number: Enter the burner type and BTU output (i.e. CFB180, CFBT290, CFBO140) If you do not have the model information, you may search using only the manufacturer name to bring up all Warming Trends burners that are accepted.

        Click “Find Products” and see the listing of accepted products.

        Canadian Customers

        Most metropolitan areas in Canada will require an automatic shutoff for fire pits over 65K BTUs in order to get a permit or certification.

        • Our Premium Electronic Ignition system has the proper fuel and flame censors to automatically shut down the fire when needed. Combine it with a dial timer to increase safety and ease.
        • You can still purchase higher BTU burners without the premium ignition, and we will ship it with a fitting that limits the burner to 65K BTUs in the case that you’d like to have it certified.



        Plates and Pans

        *A burner plate or pan is required for use of any ignition system other than match lit.

        The main purpose of the plate or pan is to hold in the media (lava rock, glass, etc). It also acts like the hood of a car, in that it can be lifted up and out in order to access the gas line or key valve underneath. The plate/pan makes installation easier as well.

        What’s it made of?

        • Aluminum
        • Aluminum does not rust

        Is a plate/pan ALWAYS necessary?

        • No, in some cases a plate/pan is not necessary
        • You may decide to fill up the space with some gravel or lava rock and set the burner on that instead of a plate or pan
        • Using a plate/pan is the most convenient for installation and maintenance

        Plate (No Sidewalls)

        • Appropriate for most builds
        • Sidewalls are not necessary when the burner is in the common position- recessed 3-5 inches below the finished top
        • Use stacked cinder blocks, bricks, or pavers under the plate. This makes for a simple and sturdy plate mount

        Pans (2″ or 3″ Sidewalls. 2″ is Standard.)

        • If the top of your fire table overlaps, or encroaches into your opening, and its thickness is less than 3 inches, you may want a pan instead of a plate (since the pan has to be smaller than the smallest part of the inside diameter)
        • The sidewalls help contain the fire media/lava rock

        Drop-In Pans (2″ or 3″ Sidewalls + 1″-2″ Lip)

        • Sometimes necessary if you plan on building a portable fire feature and aren’t able to stack up blocks under the plate
        • Bar-height or uncommon builds might benefit from a drop-in pan
        • You will see a brushed aluminum metal band on the top of your fire feature when you use a drop in pan
        • Drop-in pans are available as a custom order – CLICK HERE
        • We recommend 3″ sidewalls with a 1.5″ lip in most cases

        Does the plate attach to the burner?

        • In most cases, yes
          • When you order a package from us, most of the time it will come with a threaded piece welded on to the plate/pan
          • The burner screws onto it
          • It’s very simple to remove or attach the burner (righty-tighty, lefty-loosy… make sure to re-apply pipe dope/tape!)
        • It’s not required that the burner attaches to the plate/pan. You can set the burner directly on the plate/pan. This will reduce the height of the burner by 3/4″. This might be beneficial if you want to cover your fire feature with a flat cover

        There are many methods to mount a plate/pan inside your fire feature. We’re just going to tell you our favorite way to do things because… well, it has worked well so far! With that being said, these methods may not work in all situations, so put your problem-solving hat on and get creative.

        *Complete & RTF Systems:  you won’t need to worry about plate/pan mounting; they’re designed for simplicity

        Mounting the Plate/Pan

        • Consider stacking up cinder blocks, bricks, or pavers inside the fire feature cavity
        • Place the plate/pan directly on the blocks
        • Adjust the block height by either adding some fill, or by digging underneath
        • Most commonly, plates/pans are mounted 4″-5″ below the finished top of the fire feature

        Plate/Pan Depth

        • 4-5″ below the finished top is recommended
        • Recessing it deeper may make the fire seem smaller, and you won’t see the media as well
        • Recessing it to be more shallow can give it a “proud” look; where all the parts stick up high and make a statement. Though you may have to ‘mound’ the fire media up higher in order to cover the jets. It’s not a bad look, but you won’t be able to use a flat metal cover if that’s your desire.
        • The depth at which the plate sits is really up to you. Keep in mind, the burner sits 3″ high from plate to the tip of the jet

        If your fire feature is already built and you can’t use a standard sized plate, you have a few options:

        Cut your plate to size on-site

          • Use a jig-saw with metal blade, or a grinder wheel with cutoff
          • It’s 3/16″ aluminum and your cut doesn’t need to look pretty

        Make your plate bigger

          • Use concrete board to extend the size of the plate
          • Watch THIS VIDEO to get an idea

        Order a Custom Size

        *TIP: Give yourself about 1/2″ of space around the plate so that it’s easy to insert into the fire feature opening

        Determining What You Need

        (Recommended)

        Enables easy flame height adjustment as well as the ability to turn the gas on or off.  All flex lines are stainless steel and whistle free.

        FK1

        • For use with any 121K – 249K BTU Burner
        • Kit Includes: (1) 36” L x 3/4” Diameter Flex Line + (2) 3/4″ Flared Fittings + 3/4” Key Valve + 3” and 12” Key + 1/2” x 2” Nipple

        FK2

        • For use with any burner 300K+ BTU
        • Kit Includes: (2) 36” L x 3/4” Diameter Flex Lines + (4) 3/4″ Flared Fittings + 3/4” Key Valve + 3” and 12” Key + (2) 3/4” x 3” Nipple + (2) 3/4” Tee + (1) 3/4” x 1/2” MM Reducer Fitting
        FKM1 – Specific to the Mercury Ignition. Allows fuel connection from the ignition to the burner.
        • If the walls of your fire pit are thick, you may need this accessory
        • Closes the gap from the key valve to the decorative faceplate (escutcheon)
        • Can also be made onsite with hard pipe or sprinkler pipe to the length that you need

        Vent Kit

        Recommended Ventilation

        • 18 square inches on opposing sides (for cross-breeze)
        • Keep the vents lower towards the ground
        • Dimensions: 3 7/8″ x 12″

        Ignition Types

        Installation of Ignition

        • A burner plate or pan is required for any ignition system other than match lit.
        • If you have your own plate or pan, you will need to drill a hole in it for the mounting of the ignition pilot/spark rod.
        • The Mercury Ignition has a 250,000 BTU limitation.
        Platinum Ignition System by Warming Trends gas fire pit ignition types

        *NEW* Platinum Ignition System

        Installation: Comes pre-installed to the plate/pan unless ordered a la carte. This allows for a hassle-free setup. Electrical required.

        The Platinum Automatic Ignition System delivers superior quality, performance, and value. Expertly engineered, this innovative ignition has been designed and built to be the safest and most dependable way to light fire in both residential and commercial spaces.

        • Light your fire with the flip of a switch, remote, home automation, or dial timer.
        • Clean design with no need for any components to be attached to the outside of your fire feature.
        • Auto shutoff for the ultimate safety + fully certified.
        • Made in the U.S.A.
        • 680,000 BTUs of gas output
        • Unique wind cage design that provides true protection to the pilot components from wind and rain.
        • Customized ignition settings allow for better performance and reduces cycling faults.
        • Robust components provide reliability and durability.
        • LED-based diagnostics provide quick and easy troubleshooting.
        • Design allows for field serviceability.
        • Coupled with the Warming Trends’ WATERSTOP™ fitting provides unmatched protection of the ignition from water and debris.
        • Warranty: 3 years for residential, 1 year for commercial (burner must be covered when not in use or warranty is null and void)
        • Electrical is required
        • Commonly used is a standard 110 volt GFI outlet located underneath the fire pit
        • For product support, please contact Warming Trends at 303-346-2224

        Mercury Ignition (Battery Powered)

        Installation: Comes pre-installed to the plate/pan unless ordered a la carte. This allows for a hassle-free setup. Powered by (2) AA batteries.

        Mercury Ignition Spark Igniter with Internal Safety Shutoff + 3 FT Pilot for use up to 240K BTU

        • Added safety of auto fuel shutoff
        • Great for commercial spaces or if non-homeowners desire to light the fire
        • Pilot assembly comes pre-mounted to the plate
        • Only available with burner and plate combo orders or the Venture Series
        • No key valve required
        • View INFORMATION PDF

        Watch how the Mercury works…

        Play Video

        Match Lit (Most Common)

        • To light, turn your fuel valve (most commonly a key valve supplied by us) to a low volume
        • Use a lighter or match to ignite the flame manually
        • Gradually turn up the key valve so that the other jets light
        • Not recommended for kids or VRBO/Rentals

        Installation: hole for the spark rod is pre-drilled in the plate/pan unless ordered a la cart.

        Push Button Ignition Kit + Mounting Bracket

        • Powered by a AA battery
        • Holds a key valve as well as button module
        • To light, turn the key and press spark button until lit
        • Will work with any size burner, but for large burners over 350,000 BTUs, we recommend the Platinum Ignition
        • The bracket allows for more mounting options
        • Can be used in place of a paver
        • Should be combined with a Key Valve/Flex line kit

        Dimensions of bracket:

          • Width: Adjustable 8″-12″
          • Height: 3 7/8″
          • Depth: 5″

        Push Button Battery Operated Control Module + Spark Igniter Rod and Wire

        • AA Battery operated
        • Spark rod is mounted to the plate
        • Spark rod must be within very close proximity to a jet on the burner
        • To light, turn the key valve (separate product) to get gas flow going and press button until spark ignites the fuel
        • Without a mounting bracket, the button most commonly mounts to a metal fire pit

        Holiday Deals🎄

        Reduced Prices & Free Lava Pebbles w/ Select Models

        Hours
        Minutes
        Seconds

        Enter Code at Checkout:

        Subscribe & Save 5%!

        This field is for validation purposes and should be left unchanged.

        givethanks2024

        Limited stock… Order Today!

        Here’s what you get…

        Subscribe and receive a discount code and use it even on sale items!

        Available with purchase of Venture & Arbor collections, or Fast Ship inventory.

        Orders over $99, lower 48 states.

        If you see a lower price from MFP before the year ends, we’ll refund you the difference!

        Use code at checkout:

        SAVE5

        Days
        Hours
        Seconds

        Save 5% Today

        +Free Nationwide Shipping

        By signing up, you agree to receive occasional emails from Montana Fire Pits. You can unsubscribe anytime by clicking the link at the bottom of an email.

        Prices are Changing

        Beginning February 1st, 2023

        Prices for our products will increase about 3% starting on February 1st. As always, with Montana Fire Pits you’ll enjoy:

        • Products made in the U.S.A
        • Highest quality materials and design
        • High customer satisfaction ratings
        • The best fire in the industry

        Thank you for considering Montana Fire Pits!

        MFPbadgeColor

        Lead Times

        • Most of our products are hand-made to order in the U.S.
        • Delays in production are rare, but can occur with un-expected changes in order volume.
        • Thank you for your patience as we strive to ship your fire gear as fast as possible.

        Good things take time

        Tracking information is emailed to you once it becomes available. Order status updates are often not available until production is complete. Thank you for your patience!

        Current estimated time until shipping:

        Standard Burners:

        • Made to order
        • 2-3 weeks

        Custom Burners:

        • Made to order
        • 4-5 weeks

        Venture/Arbor Series (Steel/wood):

        • Made to order
        • 5-7 Weeks

        In Stock (Fast Ship) Options:

        • 1-2 Weeks

        Gather Series (Concrete):

        • Made to order
        • 8 Weeks

        Fire Media:

        • 2-4 Weeks
        • Backorder dates will be listed on the product if applicable

        Ready to Finish Kits:

        • Made to order
        • 4-6 Weeks

        Color Samples:

        • 5-7 Days

        Fire Pit Parts

        • 5-7 Days

        Firestorm Portable:

        • In Stock
        • 5-7 business days

        Transit time not included. Expect 1-2 weeks for the shipment to arrive.

        Shipping Costs

        Please add products to your cart and enter your address at checkout to see detailed shipping costs

        *Free Shipping: Applies to most orders over $99 in the continental U.S. with the following exceptions:

        • Burners over 50″: $279.00

        *Shipping to Canada: You may be charged additional border fees and taxes when you receive your product. Montana Fire Pits is not responsible for those fees.

        *Please add products to your cart and enter your address to see more information on shipping costs to Canada, Hawaii, and Alaska

        []
